The output class is intended to be inherited by MistOut process classes. More...

#include <output.h>

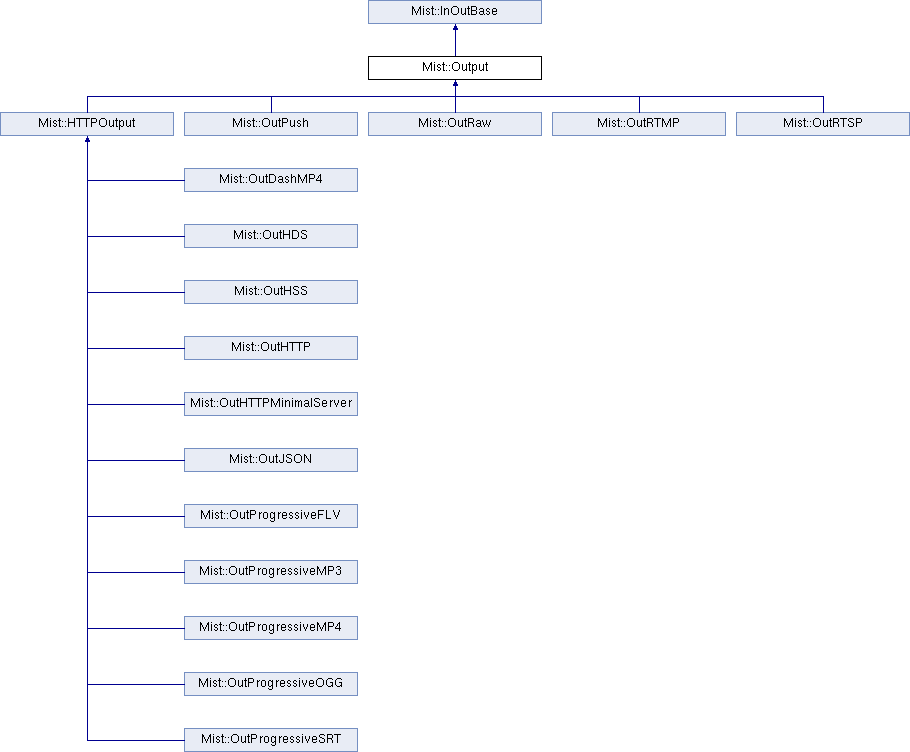

Inheritance diagram for Mist::Output:

Public Member Functions
	Output (Socket::Connection &conn)

virtual	~Output ()

void	bufferFinalize (unsigned long tid)
	Wraps up the buffering of a shared memory data page. More...

void	bufferLivePacket (JSON::Value &packet)
	Buffers a live packet to a page. More...

void	bufferLivePacket (DTSC::Packet &packet)
	Buffers a live packet to a page. More...

void	bufferNext (DTSC::Packet &pack)
	Buffers the next packet on the currently opened page. More...

void	bufferNext (JSON::Value &pack)
	Buffers the next packet on the currently opened page. More...

void	bufferRemove (unsigned long tid, unsigned long pageNumber)
	Removes a fully buffered page. More...

bool	bufferStart (unsigned long tid, unsigned long pageNumber)

bool	closeOutputFileForRecording ()

long unsigned int	getMainSelectedTrack ()
	Returns the ID of the main selected track, or 0 if no tracks are selected. More...

virtual void	initialize ()

void	initiateMeta ()
	Opens a shared memory page for the stream metadata. More...

virtual void	onFail ()
	Called when stream initialization has failed. More...

virtual bool	onFinish ()

virtual void	onRecord ()

virtual void	onRequest ()

bool	openOutputFileForRecording ()

virtual void	prepareNext ()

void	reconnect ()
	Connects or reconnects to the stream. More...

virtual void	requestHandler ()

int	run ()

void	seek (unsigned long long pos)
	Prepares all tracks from selectedTracks for seeking to the specified ms position. More...

bool	seek (unsigned int tid, unsigned long long pos, bool getNextKey=false)

void	selectDefaultTracks ()

virtual void	sendHeader ()

virtual void	sendNext ()

void	setBlocking (bool blocking)

void	stats ()

void	stop ()
	Clears the buffer, sets parseData to false, and generally makes not very much happen at all. More...

void	updateMeta ()

Static Public Member Functions
static void	init (Util::Config *cfg)

static bool	listenMode ()

Data Fields
std::string	reqUrl

Static Public Attributes
static JSON::Value	capa = JSON::Value()

Protected Member Functions
void	continueNegotiate (unsigned long tid)

virtual std::string	getConnectedBinHost ()

virtual std::string	getConnectedHost ()

unsigned int	getKeyForTime (long unsigned int trackId, long long timeStamp)

bool	recording ()

Protected Attributes
std::map< int, DTSCPageData >	bookKeeping

bool	completeKeysOnly
	Bool if we send whole keys only, so the metadata is complete and the output knows in advance what will be sent. More...

unsigned int	crc
	Checksum, if any, for usage in the stats. More...

bool	isBlocking
	If true, indicates that myConn is blocking. More...

bool	isInitialized
	If false, triggers initialization if parseData is true. More...

unsigned int	maxSkipAhead
	Maximum ms that we will go ahead of the intended timestamps. More...

unsigned int	minSkipAhead
	Minimum ms that we will go ahead of the intended timestamps. More...

Socket::Connection &	myConn
	Connection to the client. More...

DTSC::Meta	myMeta
	Stores either the input or output metadata. More...

negotiationProxy	nProxy

int	outputFileDescriptor

bool	parseData
	If true, triggers initalization if not already done, sending of header, sending of packets. More...

unsigned int	realTime
	Playback speed in ms of data per second. eg: 0 is infinite, 1000 real-time, 5000 is 0.2X speed, 500 = 2X speed. More...

std::set< unsigned long >	selectedTracks
	Stores the track id's that are either selected for playback or input. More...

bool	sentHeader
	If false, triggers sendHeader if parseData is true. More...

bool	standAlone

IPC::sharedClient	statsPage
	Shared memory used for statistics reporting. More...

std::string	streamName

DTSC::Packet	thisPacket

bool	wantRequest
	If true, waits for a request. More...

Static Protected Attributes
static Util::Config *	config = NULL

Private Member Functions
bool	checkLimits ()

std::string	getCountry (std::string ip)

std::string	hostLookup (std::string ip)

bool	isBlacklisted (std::string host, std::string streamName, int timeConnected)

void	loadPageForKey (long unsigned int trackId, long long int keyNum)

void	Log (std::string type, std::string message)

bool	onList (std::string ip, std::string list)

int	pageNumForKey (long unsigned int trackId, long long int keyNum)

Private Attributes
std::set< sortedPageInfo >	buffer
	A sorted list of next-to-be-loaded packets. More...

bool	completeKeyReadyTimeOut

std::map< unsigned long, unsigned int >	currKeyOpen

long long unsigned int	firstTime
	Time of first packet after last seek. Used for real-time sending. More...

unsigned int	lastStats
	Time of last sending of stats. More...

std::map< unsigned long, unsigned long >	nxtKeyNum
	Contains the number of the next key, for page seeking purposes. More...

bool	sought
	If a seek has been done, this is set to true. Used for seeking on prepareNext(). More...

Detailed Description

The output class is intended to be inherited by MistOut process classes.

It contains all generic code and logic, while the child classes implement anything specific to particular protocols or containers. It contains several virtual functions, that may be overridden to "hook" into the streaming process at those particular points, simplifying child class logic and implementation details.

Constructor & Destructor Documentation

Mist::Output::Output ( Socket::Connection & conn )

Mist::Output::~Output ( )

virtual

Member Function Documentation

void Mist::InOutBase::bufferFinalize ( unsigned long tid )

inherited

Wraps up the buffering of a shared memory data page.

Registers the data page on the track index page as well

Parameters

tid	The trackid of the page to finalize

void Mist::InOutBase::bufferLivePacket ( JSON::Value & packet )

inherited

Buffers a live packet to a page.

Handles both buffering and creation of new pages

Initiates/continues negotiation with the buffer as well

Parameters

packet The packet to buffer

void Mist::InOutBase::bufferLivePacket ( DTSC::Packet & packet )

inherited

Buffers a live packet to a page.

Handles both buffering and creation of new pages

Initiates/continues negotiation with the buffer as well

Parameters

packet The packet to buffer

void Mist::InOutBase::bufferNext ( DTSC::Packet & pack )

inherited

Buffers the next packet on the currently opened page.

Parameters

pack	The packet to buffer

void Mist::InOutBase::bufferNext ( JSON::Value & pack )

inherited

Buffers the next packet on the currently opened page.

Parameters

pack	The packet to buffer

Note: Internally calls bufferNext(DTSC::Packet & pack)

void Mist::InOutBase::bufferRemove	(	unsigned long	tid,
		unsigned long	pageNumber
	)

inherited

Removes a fully buffered page.

Does not do anything if the process is not standalone, in this case the master process will have an overloaded version of this function.

Parameters

tid	The trackid to remove the page from
pageNumber	The number of the page to remove

bool Mist::InOutBase::bufferStart	(	unsigned long	tid,
		unsigned long	pageNumber
	)

inherited

bool Mist::Output::checkLimits ( )

private

bool Mist::Output::closeOutputFileForRecording ( )

void Mist::InOutBase::continueNegotiate ( unsigned long tid )

protectedinherited

std::string Mist::Output::getConnectedBinHost ( )

protectedvirtual

Reimplemented in Mist::HTTPOutput.

std::string Mist::Output::getConnectedHost ( )

protectedvirtual

Reimplemented in Mist::HTTPOutput.

std::string Mist::Output::getCountry ( std::string ip )

private

unsigned int Mist::Output::getKeyForTime	(	long unsigned int	trackId,
		long long	timeStamp
	)

protected

long unsigned int Mist::Output::getMainSelectedTrack ( )

Returns the ID of the main selected track, or 0 if no tracks are selected.

The main track is the first video track, if any, and otherwise the first other track.

std::string Mist::Output::hostLookup ( std::string ip )

private

void Mist::Output::init ( Util::Config * cfg )

static

void Mist::Output::initialize ( )

virtual

Trigger:: The "CONN_PLAY" trigger is stream-specific, and is ran when an active connection first opens a stream.

Its payload is:

streamname
connected client host
output handler name
request URL (if any)

The "USER_NEW" trigger is stream-specific, and is ran when a new user first opens a stream. Segmented protcols are unduplicated over the duration of the statistics log (~10 minutes), true streaming protocols (RTMP, RTSP) are not deduplicated as no duplication ever takes place. Its payload is:

streamname
connected client host
User agent checksum (CRC32 of User-agent string)
output handler name
request URL (if any)

Reimplemented in Mist::OutDashMP4.

void Mist::InOutBase::initiateMeta ( )

inherited

Opens a shared memory page for the stream metadata.

Assumes myMeta contains the metadata to write.

bool Mist::Output::isBlacklisted	(	std::string	host,
		std::string	streamName,
		int	timeConnected
	)

private

static bool Mist::Output::listenMode ( )

inlinestatic

void Mist::Output::loadPageForKey	(	long unsigned int	trackId,
		long long int	keyNum
	)

private

void Mist::Output::Log	(	std::string	type,
		std::string	message
	)

private

Todo:: These logs need to show up in the controller.

Todo:: Additionally, the triggering and untriggering of limits should be recorded in the controller as well.

void Mist::Output::onFail ( )

virtual

Called when stream initialization has failed.

The standard implementation will set isInitialized to false and close the client connection, thus causing the process to exit cleanly.

Reimplemented in Mist::HTTPOutput, and Mist::OutHTTP.

virtual bool Mist::Output::onFinish ( )

inlinevirtual

Reimplemented in Mist::OutProgressiveOGG, and Mist::OutJSON.

bool Mist::Output::onList	(	std::string	ip,
		std::string	list
	)

private

virtual void Mist::Output::onRecord ( )

inlinevirtual

Reimplemented in Mist::HTTPOutput.

void Mist::Output::onRequest ( )

virtual

Reimplemented in Mist::OutRTSP, Mist::OutRTMP, Mist::HTTPOutput, and Mist::OutProgressiveOGG.

bool Mist::Output::openOutputFileForRecording ( )

int Mist::Output::pageNumForKey	(	long unsigned int	trackId,
		long long int	keyNum
	)

private

void Mist::Output::prepareNext ( )

virtual

void Mist::Output::reconnect ( )

Connects or reconnects to the stream.

Assumes streamName class member has been set already. Will start input if not currently active, calls onFail() if this does not succeed. After assuring stream is online, clears nProxy.metaPages, then sets nProxy.metaPages[0], statsPage and nProxy.userClient to (hopefully) valid handles. Finally, calls updateMeta()

bool Mist::Output::recording ( )

protected

void Mist::Output::requestHandler ( )

virtual

Reimplemented in Mist::HTTPOutput, and Mist::OutPush.

int Mist::Output::run ( )

Trigger:: The "CONN_OPEN" trigger is stream-specific, and is ran when a connection is made or passed to a new handler.

Its payload is:

streamname
connected client host
output handler name
request URL (if any)

The "CONN_CLOSE" trigger is stream-specific, and is ran when a connection closes. Its payload is:

streamname
connected client host
output handler name
request URL (if any)

Todo:: generate payload

void Mist::Output::seek ( unsigned long long pos )

Prepares all tracks from selectedTracks for seeking to the specified ms position.

bool Mist::Output::seek	(	unsigned int	tid,
		unsigned long long	pos,
		bool	getNextKey = `false`
	)

void Mist::Output::selectDefaultTracks ( )

void Mist::Output::sendHeader ( )

virtual

Reimplemented in Mist::OutProgressiveMP4, Mist::OutRTMP, Mist::OutDashMP4, Mist::OutJSON, Mist::OutProgressiveOGG, Mist::OutHSS, Mist::OutProgressiveFLV, Mist::OutProgressiveMP3, Mist::OutProgressiveSRT, and Mist::OutRaw.

virtual void Mist::Output::sendNext ( )

inlinevirtual

Reimplemented in Mist::OutProgressiveMP4, Mist::OutRTSP, Mist::OutRTMP, Mist::OutHDS, Mist::OutDashMP4, Mist::OutJSON, Mist::OutProgressiveOGG, Mist::OutHSS, Mist::OutProgressiveFLV, Mist::OutProgressiveMP3, Mist::OutProgressiveSRT, and Mist::OutRaw.

void Mist::Output::setBlocking ( bool blocking )

void Mist::Output::stats ( )

void Mist::Output::stop ( )

Clears the buffer, sets parseData to false, and generally makes not very much happen at all.

void Mist::Output::updateMeta ( )

Field Documentation

std::map<int,DTSCPageData> Mist::Output::bookKeeping

protected

std::set<sortedPageInfo> Mist::Output::buffer

private

A sorted list of next-to-be-loaded packets.

JSON::Value Mist::Output::capa = JSON::Value()

static

bool Mist::Output::completeKeyReadyTimeOut

private

bool Mist::Output::completeKeysOnly

protected

Bool if we send whole keys only, so the metadata is complete and the output knows in advance what will be sent.

Util::Config * Mist::InOutBase::config = NULL

staticprotectedinherited

unsigned int Mist::Output::crc

protected

Checksum, if any, for usage in the stats.

std::map<unsigned long, unsigned int> Mist::Output::currKeyOpen

private

long long unsigned int Mist::Output::firstTime

private

Time of first packet after last seek. Used for real-time sending.

bool Mist::Output::isBlocking

protected

If true, indicates that myConn is blocking.

bool Mist::Output::isInitialized

protected

If false, triggers initialization if parseData is true.

unsigned int Mist::Output::lastStats

private

Time of last sending of stats.

unsigned int Mist::Output::maxSkipAhead

protected

Maximum ms that we will go ahead of the intended timestamps.

unsigned int Mist::Output::minSkipAhead

protected

Minimum ms that we will go ahead of the intended timestamps.

Socket::Connection& Mist::Output::myConn

protected

Connection to the client.

DTSC::Meta Mist::InOutBase::myMeta

protectedinherited

Stores either the input or output metadata.

negotiationProxy Mist::InOutBase::nProxy

protectedinherited

std::map<unsigned long, unsigned long> Mist::Output::nxtKeyNum

private

Contains the number of the next key, for page seeking purposes.

int Mist::Output::outputFileDescriptor

protected

bool Mist::Output::parseData

protected

If true, triggers initalization if not already done, sending of header, sending of packets.

unsigned int Mist::Output::realTime

protected

Playback speed in ms of data per second. eg: 0 is infinite, 1000 real-time, 5000 is 0.2X speed, 500 = 2X speed.

std::string Mist::Output::reqUrl

std::set<unsigned long> Mist::InOutBase::selectedTracks

protectedinherited

Stores the track id's that are either selected for playback or input.

bool Mist::Output::sentHeader

protected

If false, triggers sendHeader if parseData is true.

bool Mist::Output::sought

private

If a seek has been done, this is set to true. Used for seeking on prepareNext().

bool Mist::InOutBase::standAlone

protectedinherited

IPC::sharedClient Mist::Output::statsPage

protected

Shared memory used for statistics reporting.

std::string Mist::InOutBase::streamName

protectedinherited

DTSC::Packet Mist::InOutBase::thisPacket

protectedinherited

bool Mist::Output::wantRequest

protected

If true, waits for a request.

The documentation for this class was generated from the following files:

src/output/output.h
src/output/output.cpp

Public Member Functions

Static Public Member Functions

Data Fields

Static Public Attributes

Protected Member Functions

Protected Attributes

Static Protected Attributes

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Field Documentation
